1. Remove the factory hanger:
Unscrew and completely remove the stock (factory) hanger from the pedal assembly. Keep the original factory screws —don’t lose them.

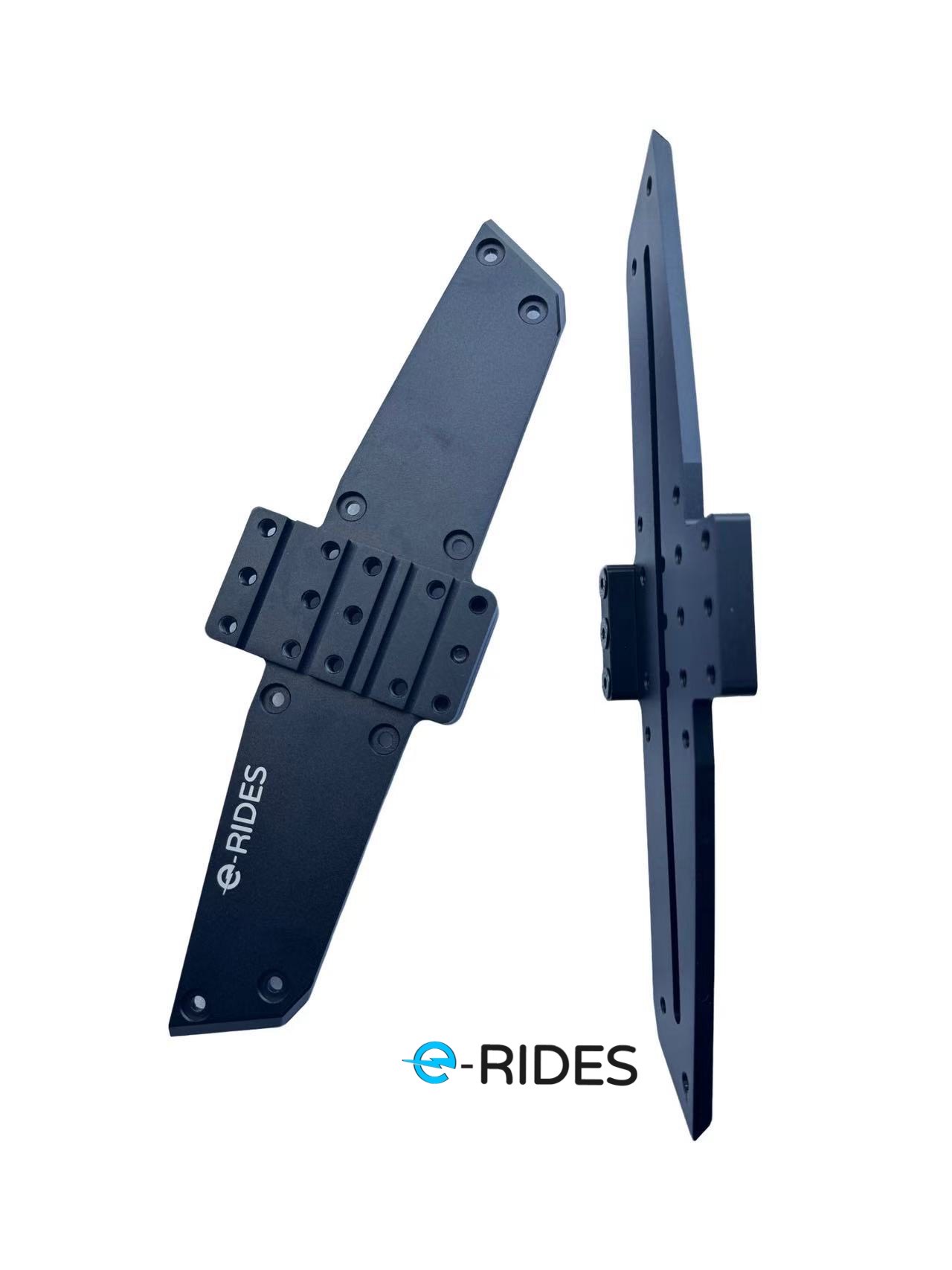

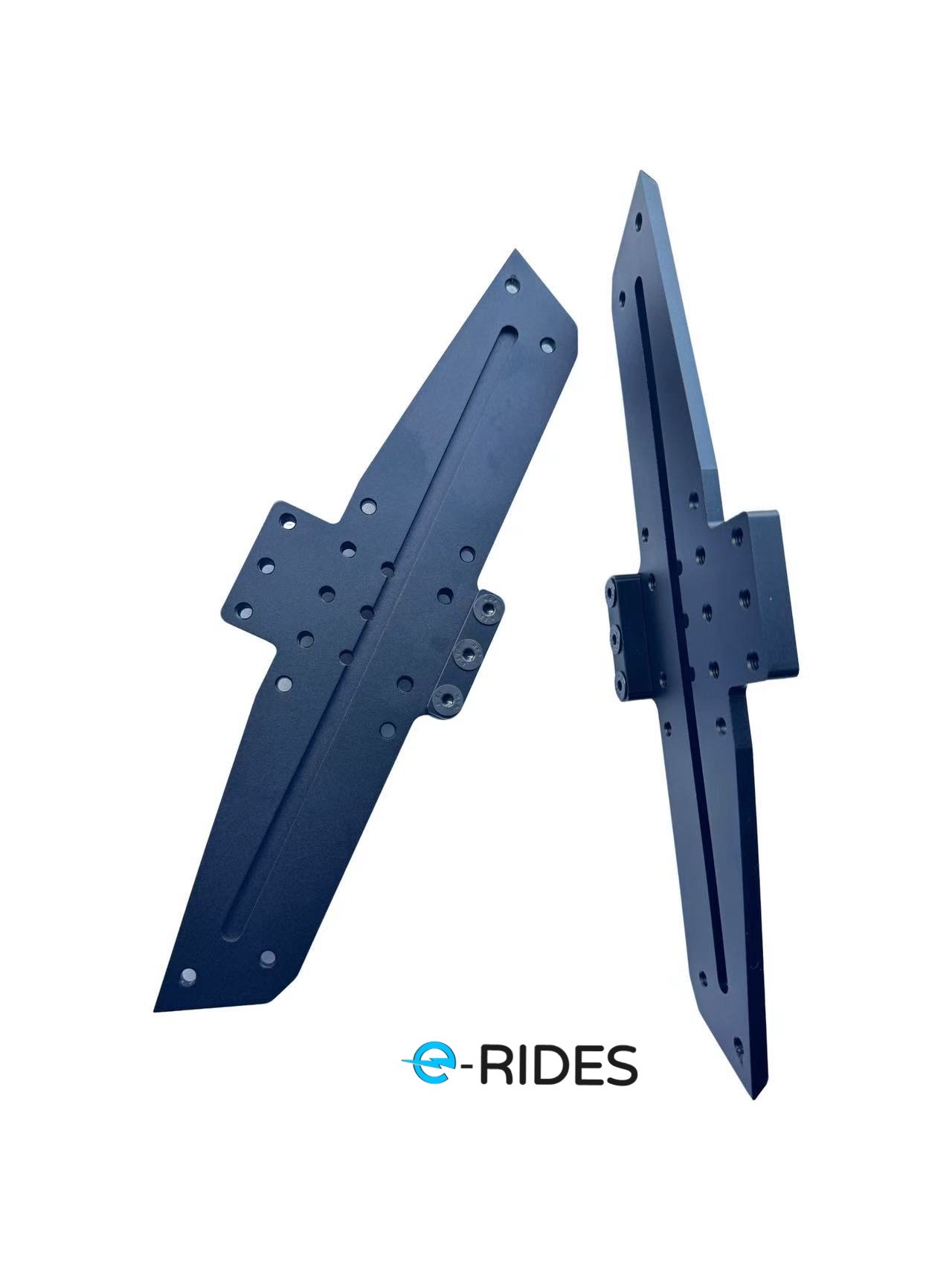

2. Install the new hanger:
Take the new hanger (the long replacement piece) and attach it in place of the factory one.

• If the original hanger is stuck to the shell/body, forcefully pull or pry it away as needed. Don’t be gentle if it resists; it has to come off clean.

• Secure the new hanger using the same factory screws you removed in Step 1. Tighten them properly—snug, but don’t strip the threads.

3. Adjust the pedal block height:
Take the pedal block piece and slide/move it up or down along the new hanger to your preferred height position.

4. Secure the pedal block:

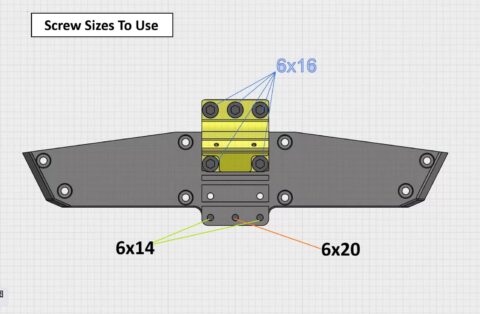

Once height is set, screw the pedal block firmly onto the hanger. Use the provided screws —make sure it’s locked in place with no wobble.

5. Install your pedals:
Mount your pedals onto the now-secured pedal block. Double-check everything is tight and aligned before use.
