E Rides Inmotion P6 Pedal Height Kit
Inmotion P6 Pedal Height Kit - Lowering Kit

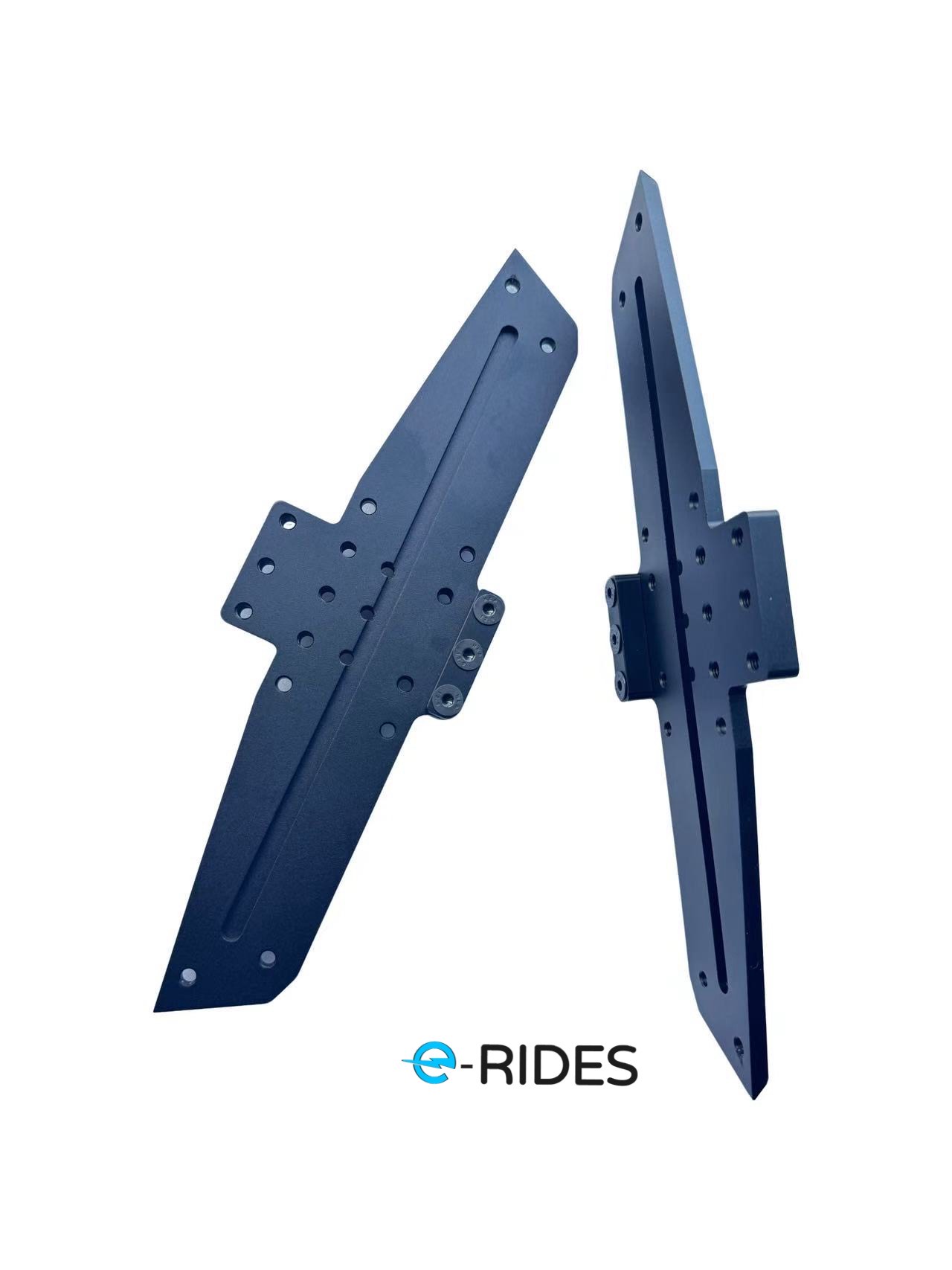

Img 7953

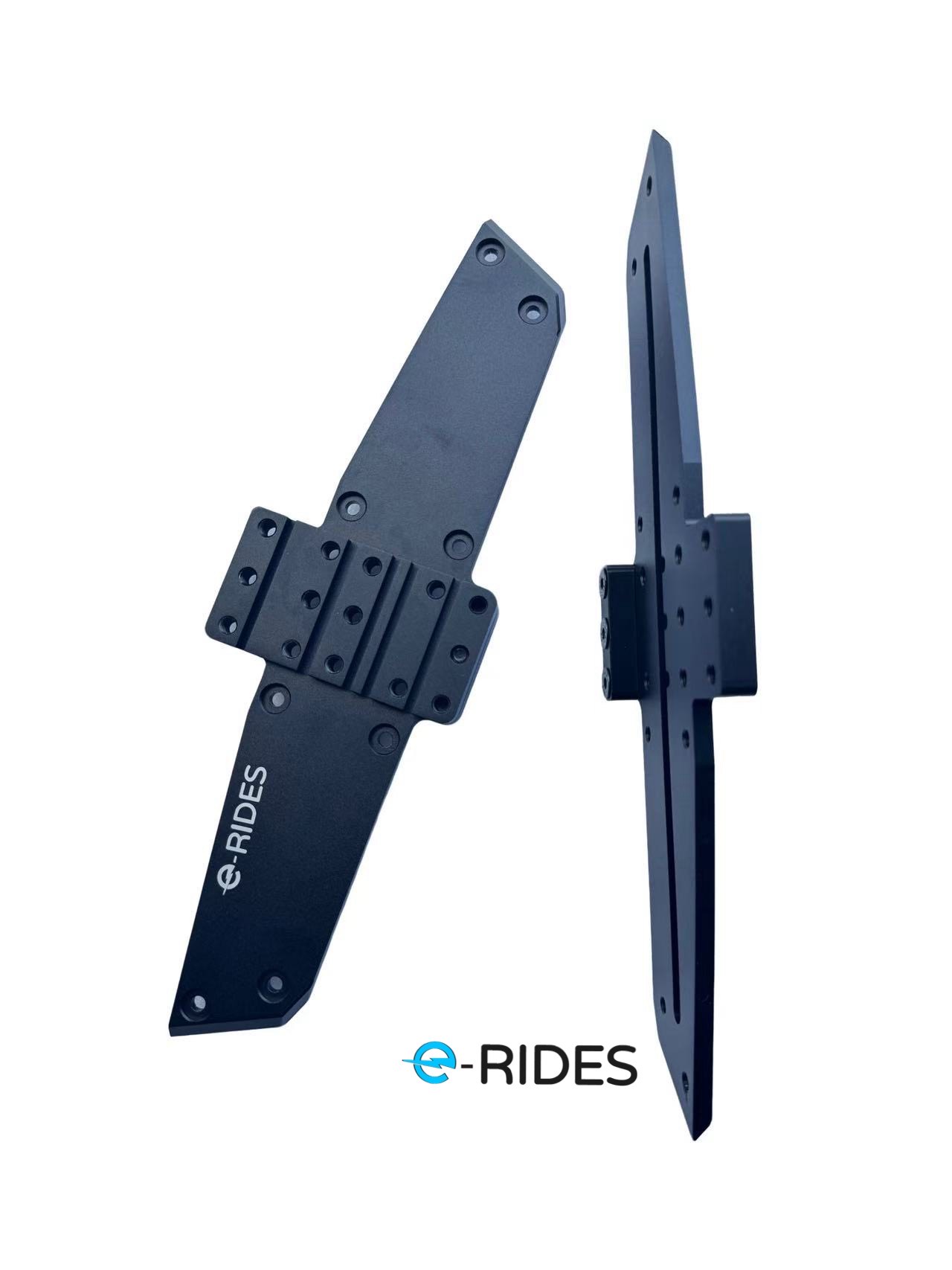

e-RIDES Inmotion P6 Height Adjustable Pedal Hanger - Lowering Kit
Inmotion P6 Pedal Height Kit - Lowering Kit

Inmotion P6 Pedal Height Kit – Lowering Kit

£149.17 ex. VAT
£179.00 inc. VAT

Finance available at checkout
  • Duologi 0% interest monthly instalment available for order above £1,000
  • Klarna and Laybuy available for order below £1,000
  • UK customers only, cannot be used in conjunction with discount codes

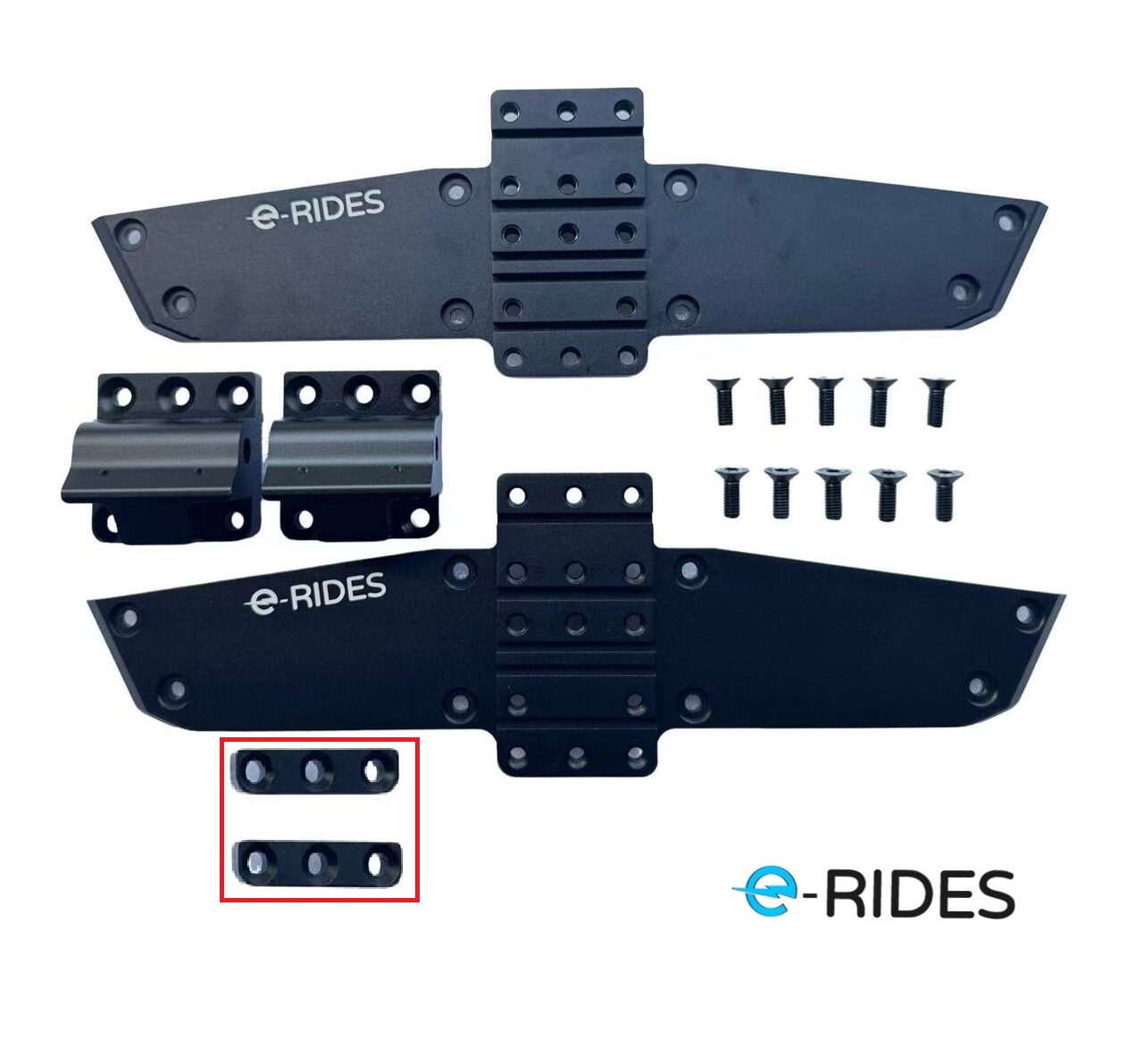

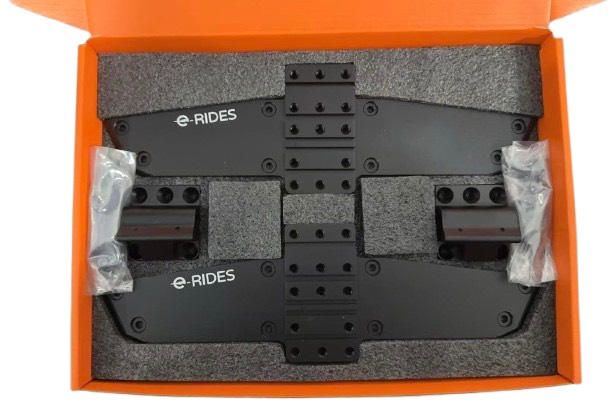

Inmotion P6 Pedal Height Kit – Lowering Kit

This is the Inmotion P6 pedal hanger height adjustment kit. Tested in collaboration with Inmotion P6 engineers.

  • Three Pedal height adjustment settings
  • Free extra back piece accessory; for improved robustness for the lower pedal setting.

Below are estimate height settings

  • Highest setting: 24mm higher than the center setting
  • Centre setting: Centre setting is about 5mm lower than factory Inmotion setting
  • Lowest Setting: Lowest setting is 20mm from the centre setting

NOTE: This kit is not designed for jumping





Available on back-order

Want to be notified when this product is back in stock?

Categories: ,

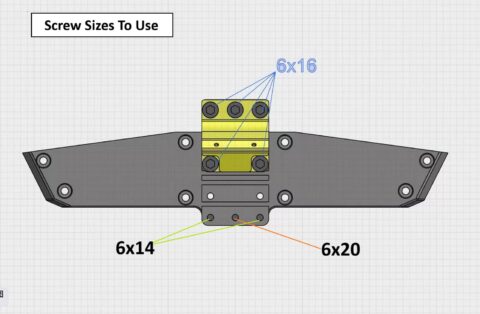

Screw Sizes Guide

Screw Sizes To Use

Installation Guide

1. Remove the factory hanger:
Unscrew and completely remove the stock (factory) hanger from the pedal assembly. Keep the original factory screws —don’t lose them.

2. Install the new hanger:
Take the new hanger (the long replacement piece) and attach it in place of the factory one.

• If the original hanger is stuck to the shell/body, forcefully pull or pry it away as needed. Don’t be gentle if it resists; it has to come off clean.

• Secure the new hanger using the same factory screws you removed in Step 1. Tighten them properly—snug, but don’t strip the threads.

3. Adjust the pedal block height:
Take the pedal block piece and slide/move it up or down along the new hanger to your preferred height position.

4. Secure the pedal block:
Once height is set, screw the pedal block firmly onto the hanger. Use the provided screws —make sure it’s locked in place with no wobble.

5. Install your pedals:
Mount your pedals onto the now-secured pedal block. Double-check everything is tight and aligned before use.
